Medical Equipment High Frequency Digital Portable X-ray Machine

Medical Equipment High Frequency Digital Portable X-ray Machine

Overview Product Description HFX-05 Portable High Frequency 100mA 5KW X-ray Machine Application The 5 kW digital portabl;
Basic Info
Model NO. HFX-05
Nominal Power 50kv,100mA,0.1s,5kw
Ma Adjusting Range 20mA~100mA
Maximum Output Power 5kw
Transport Package in Carton
Specification 290× 260× 230mm
Trademark Healicom
Origin Jiangsu, China
HS Code 9018909090
Product Description

HFX-05 Portable High Frequency 100mA 5KW X-ray Machine

Medical Equipment High Frequency Digital Portable X-ray Machine


Application The 5 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.Features 1. Deft and concise2. LCD Touch Screen3. 48 kinds of presupposed anatomy memory pattern choices4. Accuracy control method of simulation and double digital loops5. High precision control of tube voltage, tube current6. Failure self-protection, self-diagnosis

Technical specifications

Model

HFX-05

Input power

Voltage: AC220V±22V Frequency: 50/60Hz±1HzPower capacity: ≥5kVA; Inner resistance≤0.5Ω

Maximum output power

P = 110kV×50mA = 5kW

Nominal power

50kV, 100mA, 0.1s, 5kW

kV adjusting range

40kV~110kV, step adjustment 1 kV

mA adjusting range

20mA~100mA

mAs adjusting range

0.2mAs-200mAs, shifted adjustment

Exposure time

0.01S~4S

X-ray tube

Focus:0.6/1.8mm;Anode heating capacity:40KJ

X-ray machine size

290×260×230mm

Weight

18.8kg

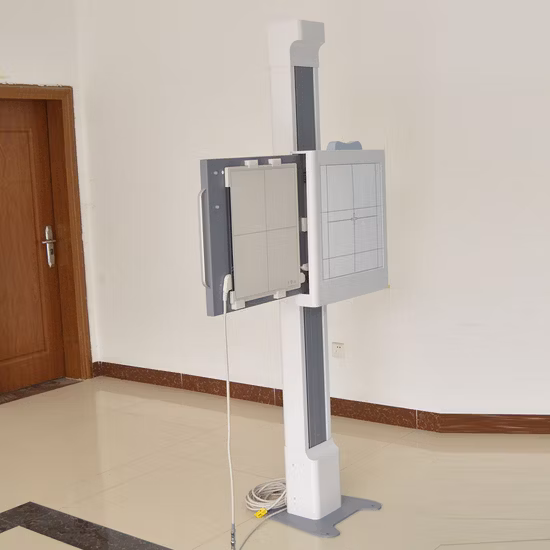

Optional Stand

Medical Equipment High Frequency Digital Portable X-ray Machine

Clinical Images

Medical Equipment High Frequency Digital Portable X-ray Machine

Customer Evaluation

Medical Equipment High Frequency Digital Portable X-ray Machine

Medical Equipment High Frequency Digital Portable X-ray Machine

Workshop

Company Profile

FAQ

1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
